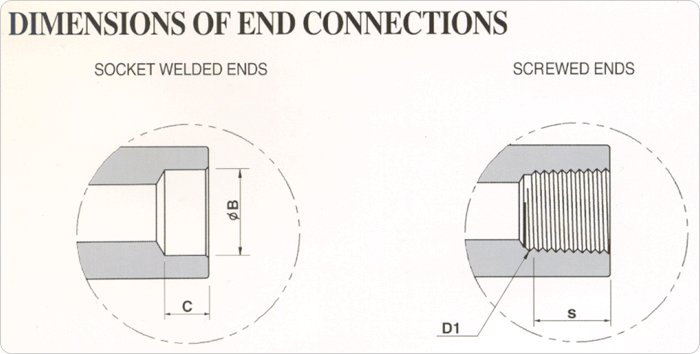

| SOCKET WELDED ENDS |
Unit : mm(inch) |
| NPS |
ANSI B 16.11 |
JIS B 2316 |
| SOCKET BORE DIA.B |
SOCKET DEPTH
MIN. C |
SOCKET BORE DIA.B |
SOCKET DEPTH
MIN. C |
| MIN. |
MAX. |
MIN. |
MAX. |
| 1/4 |
14.10(0.555) |
14.35(0.565) |
9.7(0.38) |
14.3(0.563) |
14.6(0.574) |
9.7(0.38) |
| 3/8 |
17.55(0.690) |
17.75(0.700) |
9.7(0.38) |
17.8(0.701) |
18.1(0.712) |
9.7(0.38) |
| 1/2 |
21.75(0.855) |
21.95(0.865) |
9.7(0.38) |
22.2(0.875) |
22.5(0.885) |
9.7(0.38) |
| 3/4 |
27.10(1.065) |
27.30(1.075) |
12.7(0.50) |
27.7(1.091) |
28.0(1.102) |
12.7(0.50) |
| 1 |
33.80(1.330) |
34.00(1.340) |
12.7(0.50) |
34.5(1.359) |
34.8(1.370) |
12.7(0.50) |
| 11/4 |
42.55(1.675) |
42.75(1.685) |
12.7(0.50) |
43.2(1.701) |
43.5(1.712) |
12.7(0.50) |
| 11/2 |
48.65(1.915) |
48.85(1.925) |
12.7(0.50) |
49.1(1.934) |
49.4(1.944) |
12.7(0.50) |
| 2 |
61.15(2.406) |
61.35(2.416) |
15.8(0.62) |
61.1(2.417) |
61.4(2.417) |
15.8(0.62) |
| SCREWED ENDS |
Unit : mm(inch) |
| NPS |
ANSI B 16.11 / ANSI B 1.20.1 |
JIS B 0203 |
| LENGTH OF USEFUL THREAD MIN. S |
THREAD D1 |
LENGTH OF USEFUL THREAD MIN. S |
THREAD D1 |
| 1/4 |
10.2(0.4018) |
1/4˝ - 18NPT |
9.4(0.370) |
1/4˝ - 19PT |
| 3/8 |
10.4(0.4078) |
3/8˝ - 18NPT |
9.7(0.382) |
3/8˝ - 19PT |
| 1/2 |
13.6(0.5337) |
1/2˝ - 14NPT |
12.7(0.500) |
1/2˝ - 14PT |
| 3/4 |
13.9(0.5457) |
3/4˝ - 14NPT |
14.1(0.555) |
3/4˝ - 14PT |
| 1 |
17.4(0.6828) |
1˝ - 11 1/2˝NPT |
16.2(0.638) |
1˝ - 11PT |
| 11/4 |
18.0(0.7068) |
11/4˝ - 11 1/2NPT |
18.5(0.729) |
11/4˝ - 11PT |
| 11/2 |
18.4(0.7235) |
11/2˝ - 11 1/2NPT |
18.5(0.729) |
11/2˝ - 11PT |
| 2 |
19.2(0.7565) |
2˝ - 11 1/2NPT |
22.8(0.898) |
2˝ - 11PT |
 |
|
| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| P-PT / NPT |
A |
E |
F |

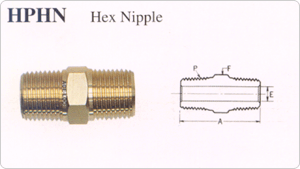

| HPHN - 06A |
1/8 |
30 |
4.8 |
7/16 |
| HPHN - 08A |
1/4 |
38 |
7.1 |
9/16 |
| HPHN - 10A |
3/8 |
40 |
9.6 |
11/16 |
| HPHN - 15A |
1/2 |
50 |
11.9 |
7/8 |
| HPHN - 20A |
3/4 |
50 |
15.7 |
11/16 |
| HPHN - 25A |
1 |
60 |
22.3 |
13/8 |
|
 |
|
| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| P-PT / NPT |
A |
E |
F |

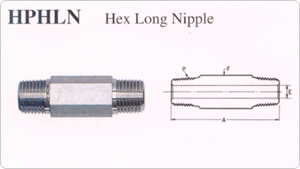

| HPHLN - 06A |
1/8 |
100 |
4.8 |
7/16 |
| HPHLN - 08A |
1/4 |
100 |
7.1 |
9/16 |
| HPHLN - 10A |
3/8 |
100 |
9.6 |
11/16 |
| HPHLN - 15A |
1/2 |
100 |
11.9 |
7/8 |
| HPHLN - 20A |
3/4 |
100 |
15.7 |
11/16 |
| HPHLN - 25A |
1 |
100 |
22.3 |
13/8 |
|
 |
|

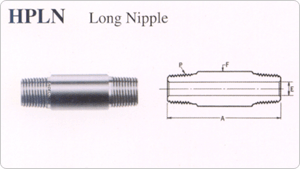

| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| P-PT / NPT |
A |
E |
F |
| HPLN - 06A |
1/8 |
100 |
5.7 |
ø10.5 |
| HPLN - 08A |
1/4 |
100 |
7.8 |
ø13.8 |
| HPLN - 10A |
3/8 |
100 |
10.9 |
ø17.3 |
| HPLN - 15A |
1/2 |
100 |
114.3 |
ø21.7 |
| HPLN - 20A |
3/4 |
100 |
19.4 |
ø27.2 |
| HPLN - 25A |
1 |
100 |
25 |
ø34 |
|
 |
|

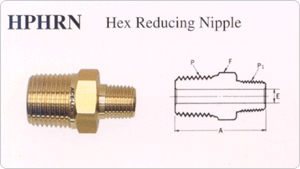

| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| P-PT / NPT |
P1-PT / NPT |
A |
E |
F |
| 8HPHRN - 06A |
1/4 |
1/8 |
32 |
5 |
9/16 |
| 10HPHRN - 08A |
3/8 |
1/4 |
38 |
7 |
11/16 |
| 15HPHRN - 08A |
1/2 |
1/4 |
42 |
7 |
7/8 |
| 15HPHRN - 10A |
1/2 |
3/8 |
42 |
9.5 |
7/8 |
| 20HPHRN - 10A |
3/4 |
3/8 |
43 |
9.5 |
11/16 |
| 20HPHRN - 15A |
3/4 |
3/8 |
48 |
12 |
11/16 |
| 25HPHRN - 15A |
1 |
1/2 |
58 |
12 |
13/8 |
| 25HPHRN - 20A |
1 |
3/4 |
58 |
15 |
13/8 |
|
 |
|
| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| P-PT / NPT |
A |
E |
F |

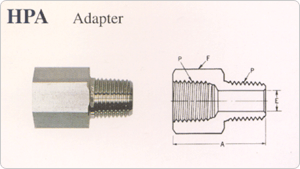

| HPA - 06A |
1/8 |
25.4 |
5 |
9/16 |
| HPA - 08A |
1/4 |
35 |
7 |
3/4 |
| HPA - 10A |
3/8 |
40 |
9.5 |
7/8 |
| HPA - 15A |
1/2 |
40 |
12 |
11/16 |
| HPA - 20A |
3/4 |
50 |
15 |
11/4 |
| HPA - 25A |
1 |
58 |
22 |
15/8 |
|
 |
|

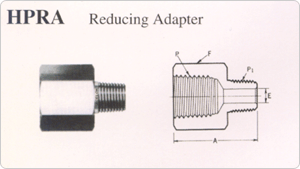

| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| P-PT / NPT |
P1-PT / NPT |
A |
E |
F |
| 8HPRA - 06A |
1/4 |
1/8 |
31 |
5 |
9/16 |
| 10HPRA - 08A |
3/8 |
1/4 |
38 |
7 |
11/16 |
| 15HPRA - 08A |
1/2 |
1/4 |
44 |
7 |
7/8 |
| 15HPRA - 10A |
1/2 |
3/8 |
44 |
9.5 |
7/8 |
| 20HPRA - 10A |
3/4 |
3/8 |
46 |
9.5 |
11/16 |
| 20HPRA - 15A |
3/4 |
1/2 |
50 |
12 |
11/16 |
| 25HPRA - 15A |
1 |
1/2 |
57 |
12 |
13/8 |
| 25HPRA - 20A |
1 |
3/4 |
57 |
15 |
13/8 |
|
 |
|

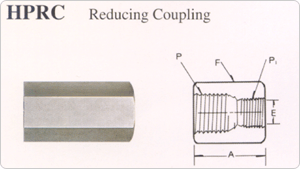

| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| P-PT / NPT |
P1-PT / NPT |
A |
E |
F |
| 8HPRC - 06A |
1/4 |
1/8 |
25 |
8 |
3/4 |
| 10HPRC - 08A |
3/8 |
1/4 |
35 |
11 |
7/8 |
| 15HPRC - 08A |
1/2 |
1/4 |
38 |
11 |
11/16 |
| 15HPRC - 10A |
1/2 |
3/8 |
38 |
15 |
11/16 |
| 20HPRC - 10A |
3/4 |
3/8 |
52 |
15 |
11/4 |
| 20HPRC - 15A |
3/4 |
1/2 |
52 |
18 |
11/4 |
| 25HPRC - 15A |
1 |
1/2 |
55 |
18 |
15/8 |
| 25HPRC - 20A |
1 |
3/4 |
57 |
22 |
15/8 |
|
 |
|
| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| P-PT / NPT |
A |
E |
F |

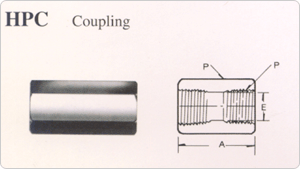

| HPC - 06A |
1/8 |
20 |
8 |
9/16 |
| HPC - 08A |
1/4 |
28 |
11 |
3/4 |
| HPC - 10A |
3/8 |
32 |
15 |
7/8 |
| HPC - 15A |
1/2 |
38 |
18 |
11/16 |
| HPC - 20A |
3/4 |
39 |
22 |
11/4 |
| HPC - 25A |
1 |
50 |
25 |
15/8 |
|
 |
|

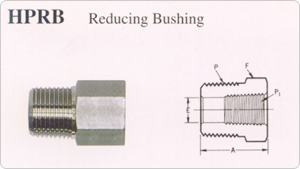

| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| P-PT / NPT |
P1-PT / NPT |
A |
E |
F |
| 8HPRB - 06A |
1/4 |
1/8 |
20 |
8 |
9/16 |
| 10HPRB - 08A |
3/8 |
1/4 |
24 |
11 |
11/16 |
| 15HPRB - 08A |
1/2 |
1/4 |
30 |
11 |
7/8 |
| 15HPRB - 10A |
1/2 |
3/8 |
30 |
15 |
7/8 |
| 20HPRB - 10A |
3/4 |
1/4 |
32 |
15 |
11/16 |
| 20HPRB - 15A |
3/4 |
1/2 |
32 |
18 |
11/16 |
| 25HPRB - 15A |
1 |
1/2 |
38 |
18 |
13/8 |
| 25HPRB - 20A |
1 |
3/4 |
38 |
22 |
13/8 |
|
 |
|

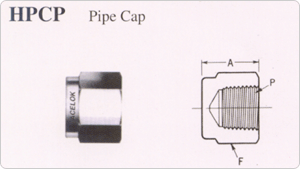

| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| P-PT / NPT |
A |
F |
| HPCP - 06A |
1/8 |
17 |
9/16 |
| HPCP - 08A |
1/4 |
22 |
3/4 |
| HPCP - 10A |
3/8 |
26 |
7/8 |
| HPCP - 15A |
1/2 |
32 |
11/16 |
| HPCP - 20A |
3/4 |
36 |
11/4 |
| HPCP - 25A |
1 |
46 |
15/8 |
|
 |
|
| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| P-PT / NPT |
A |
F |

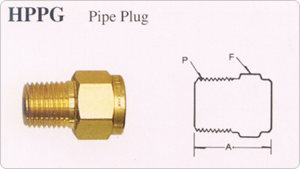

| HPPG - 06A |
1/8 |
18 |
7/16 |
| HPPG - 08A |
1/4 |
20 |
9/16 |
| HPPG - 10A |
3/8 |
24 |
11/16 |
| HPPG - 15A |
1/2 |
30 |
7/8 |
| HPPG - 20A |
3/4 |
31 |
11/16 |
| HPPG - 25A |
1 |
38 |
13/8 |
|
 |
|

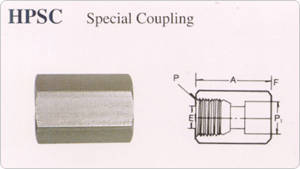

| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| MON SIZE |
P-PT / NPT |
P1-SW |
A |
E |
F |
| HPSC - 15A |
1/2 |
1/2 |
22.2 |
35 |
14 |
ø32 |
| HPSC - 20A |
3/4 |
3/4 |
27.7 |
41 |
19 |
ø38 |
| HPSC - 25A |
1 |
1 |
34.5 |
46 |
25 |
ø48 |
|
 |
|

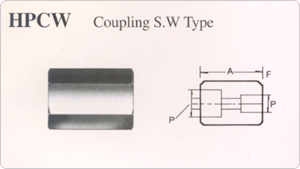

| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| MON SIZE |
P1-SW |
A |
E |
F |
| HPCW - 15A |
1/2 |
22.2 |
35 |
14 |
ø32 |
| HPCW - 20A |
3/4 |
27.7 |
41 |
19 |
ø38 |
| HPCW - 25A |
1 |
34.5 |
46 |
25 |
ø48 |
|
 |
|
| ORDERING NUMBER |
PIPE SIZE |
DIMENSION |
| MON SIZE |
P1-SW |
P-SW |
A |
E |
F |

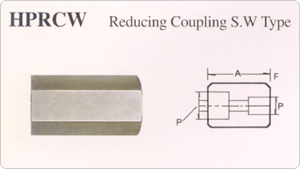

| 20HPRCW - 15A |
3/4×1/2 |
27.7 |
22.2 |
41 |
14 |
ø38 |
| 25HPRCW - 15A |
1×1/2 |
34.5 |
22.2 |
46 |
14 |
ø48 |
| 25HPRCW - 25A |
1×3/4 |
34.5 |
27.7 |
46 |
19 |
ø48 |
|
|
