Home
>
Valves
> Ball Valves 110 Series
"
*

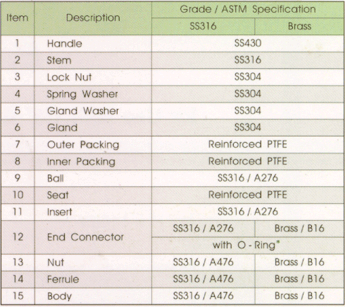

" O-Ring of NBR standard, FPM(e,g. viton)on request.

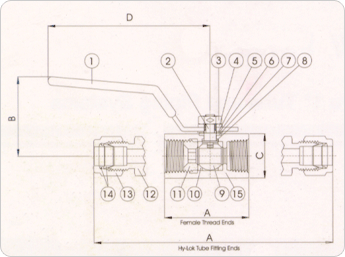

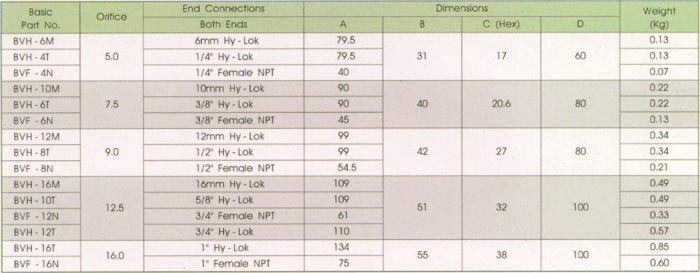

All dimensions are in milimeters. Dimensions shown with Hy-Lok nuts in finger-tight position, where applicable.
