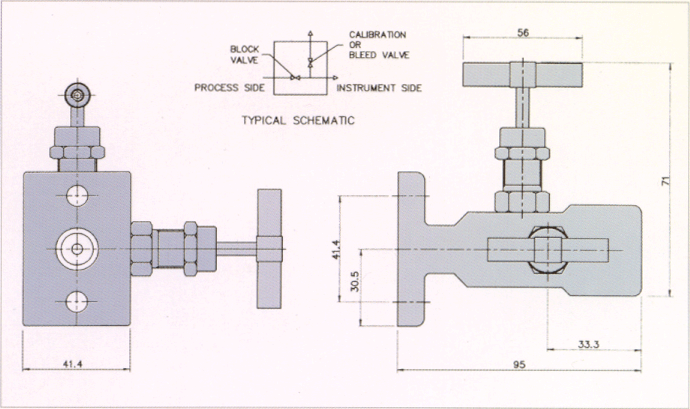

2-Valve single flanged manifold is designed for direct mounting to static pressure instrument, where calibration capability is required.
Rugged one piece construction is ideal for applications where remote mounting from the process is desired, without compromising instrument stability.
This calibration manifold reatures compact design and secure installation by eliminating unnecessary piping, Valves and fittings. A rigid mounting kit is provided for convenient pipe stand unit assembly.
|
| Body Material |
Pressure Rating |
Packing |
Pressure Rating Max. Temperature |
Stem Design |
Orifice |
316SS
316LSS
ALLOY400 |
6000Psig
-65℉ to 100℉
(-54℃ to 38℃) |
TEFLON |
4130Psi at 450℉ (232℃) |
NEEDLE TIP |
3.2mm |
| GRAFOIL |
3380Psi at 0℉ (454℃) |
 |
|

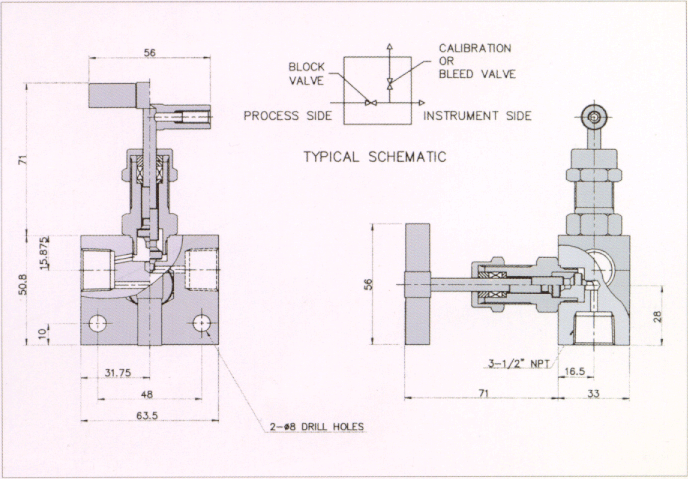

2-Valve Manifold provides an economical and convenient method of blocking, bleeding and calibrating pressure trasmitters. This valve may be mounted rigidly to a mounting bracket, providing a safe isolation valve, while reducing the number of fittings and space required for installation. |
| Body Material |
Pressure Rating |
Packing |
Pressure Rating Max. Temperature |
Stem Design |
Orifice |
316SS
316LSS
ALLOY400 |
6000Psig
-65℉ to 100℉
(-54℃ to 38℃) |
TEFLON |
4130Psi at 450℉ (232℃) |
NEEDLE TIP |
3.2mm |
| GRAFOIL |
3380Psi at 0℉ (454℃) |
|
